Zoned storage is a class of storage devices that have an address space that is divided into zones that have write constraints that are different from regular storage devices.

Principle of Operation

Zones in zoned storage devices must be written sequentially. This is called the sequential write constraint. Each zone in the device address space has a write pointer that keeps track of the position of the next write. Data in a zone cannot be directly overwritten: before being overwritten, the zone must first be erased using a special command (zone reset). The figure below illustrates this principle.

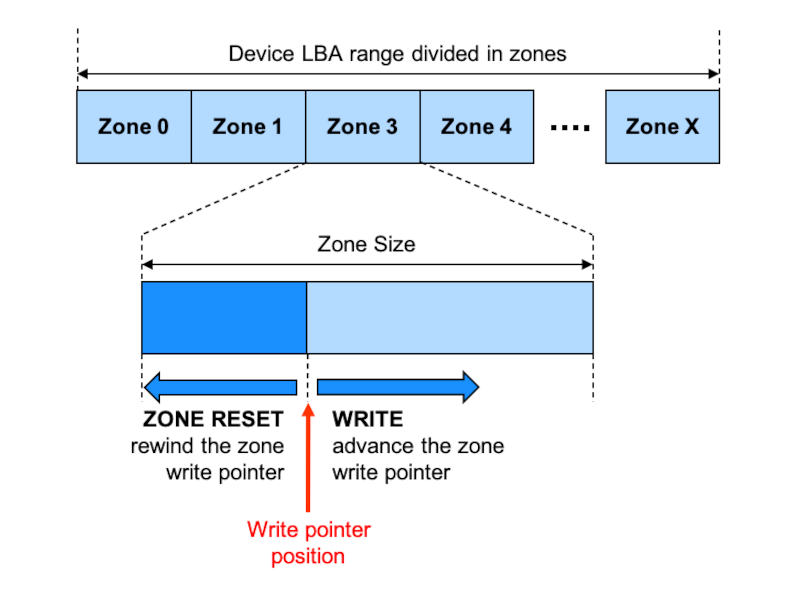

Zoned Storage Devices Principle

Zoned storage devices can be implemented using different command protocols for various recording and media technologies. The most common form of zoned storage today uses the SCSI Zoned Block Commands (ZBC) and Zoned ATA Commands (ZAC) interfaces with Shingled Magnetic Recording (SMR) hard-disks. ZBC and ZAC enable a zoned block storage model; SMR technology enables continued areal density growth that makes it possible to meet expanding data needs, and SMR technology requires the zoned block access model.

Solid State Drive (SSD) storage devices can also implement a zoned interface in order to reduce write amplification, to reduce the device's DRAM needs, and to improve the quality of service at scale. The NVMe Zoned NameSpace (ZNS) is a specification of the NVMe standard committee that adds a zoned storage interface to the NVMe interface standard.

Zone Size and Zone Capacity

The size of a zone of a zoned storage device is the total number of logical blocks within the zone. The size of each zone is fixed at manufacturing time and cannot be changed by the user.

note

There is one exception to this rule: The ZBC-2 standard extends the ZBC command set with the FORMAT WITH PRESET command which allows a user to reformat a zoned SMR hard-disk with a different zone size. This operation is however destructive and thus cannot be used on a live system.

Some zoned storage devices also define a capacity attribute for each zone. A zone capacity indicates the number of usable logical blocks within the zone, starting from the first logical block of the zone. A zone capacity is always smaller or equal to the zone size. This concept is illustrated in the figure below.

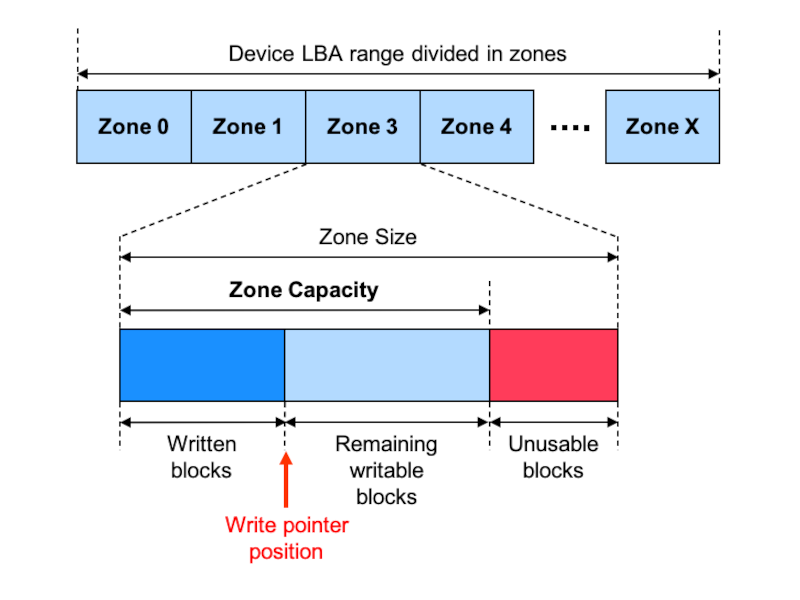

Zone Size and Zone Capacity

The use of zone capacities different from the zone size allows for the zone size to remain constant for all zones while allowing an optimized mapping of a zone storage capacity to the underlying media characteristics. For instance, in the case a flash based device, a zone capacity can be aligned to the size of flash erase blocks without imposing host requirements on the device erase block size.

Zone Models

The zone interface of zoned storage devices can take different forms. These forms are referred to as "models", and their differences impacts hosts and users. It is important to understand these differences, as not all implementation options are appropriate for a particular storage application. The two models that are in use today are:

  • Host-Managed This model accommodates only sequential write workloads to deliver both predictable performance and full control over the device zones at the host level. Modifications to host software are required to use host managed devices.

  • Host-Aware This model offers backwards compatibility with regular block devices, that is, allows random write operations to be issued to any sector. But this model also provides the same host control interface provided by the host-managed model.

Host-Managed Model

The host-managed model does not provide backwards compatibility with legacy host storage stacks. Instead, it delegates management of the device sequential write constraint to the host software: the host must manage all write operations. This is done by using the write pointer to enforce sequential writing within zones.

After data has been written to a zone, the write pointer increments in order to indicate the starting point of the next write operation in that zone. Any out-of-order write (write operation that does not start at the zone write pointer location) forces the device to abort the operation and flag an error. Recovery from such an error is the responsibility of the controlling host software. This enforcement allows host-managed devices to deliver predictable performance.

Host-Aware Model

The host-aware model simultaneously preserves compatibility with legacy host storage stacks by being backwards compatible with regular block devices but also provides the same set of commands for a host to tightly control the device zones.

All matters of host-side software support and optimization that are discussed on this site apply to host-aware devices when these devices are used similarly to host-managed devices.

ZonedStorage.io focuses on host-managed devices

The documentation pages on this site focus on host-managed devices. Host-aware devices that are used as regular devices are not discussed.

Zone Types

The standards governing the characteristics and operation of zoned storage devices define three different types of zones.

  • Conventional zones typically occupy a very small percentage of the overall capacity of a device. Accesses to conventional zones are similar to those of regular block devices (that is: conventional zones accept random write operations and are usually used to store metadata). Conventional zones do not have a write pointer.

  • Sequential-write-required zones accept random read commands and perform comparably to random read commands on standard block devices. However, these zones are subject to the zoned storage sequential write constraint and thus can only be written sequentially. Any write command must indicate a start sector that is aligned with the zone write pointer.

  • Sequential-write-preferred zones accept both random read and random write commands. However, unlike conventional zones, sequential-write-preferred zones have a write pointer and can be used exactly like sequential-write-required zones.

In general, sequential-write-required and sequential-write-preferred zones are collectively referred to as sequential zones.

The availability of each type of zone on a particular zoned device depends on the device governing standard and the device zone model. Conventional zones are optional and can be found on both host-managed and host-aware devices. Sequential write required zones are only defined for host-managed devices and sequential write preferred zones are only defined for host-aware devices.

Zone Management Commands

Zoned storage devices also provide zone discovery and management commands as extensions of the device basic command set (which is similar to the set of commands defined for regular block devices).

Host software can discover the zone organization of a zoned storage device using the REPORT ZONES command. This command returns a list of zone descriptors that indicate the starting block, size, type, and state of a zone. For sequential write required zones and sequential write preferred zones, a zone descriptor also indicates the current position of the zone write pointer. This information allows host software to implement sequential write streams to zones.

Zones can be managed using the following commands.

  • RESET ZONE WRITE POINTER is the command that host software use to reset the location of a zone write pointer to the beginning of the zone. After this command is executed, all data that was written to the zone is lost and cannot be accessed.

  • OPEN ZONE A zoned block device may require internal resources (for example, persistent zone resources) to maintain each zone. Insufficient resources may result in degraded functionality (for example, reduced performance or increased power consumption). The OPEN ZONE command allows an application to explicitly open a zone, and indicates to the device that the resources necessary for writing the zone should remain available until the zone is fully written or until the zone is closed by using the CLOSE ZONE command. The performance benefits achieved by using this command depend upon the device media type and implementation of zone management.

  • CLOSE ZONE allows an application to explicitly close a zone that was opened using the OPEN ZONE command. CLOSE ZONE indicates to the device that the resources used for writing to the zone are no longer necessary and can be released.

  • FINISH ZONE allows an application to move a zone's write pointer to the end of the zone, preventing any further write operations to the zone until it is reset.

Zone States and State Transitions

Each sequential zone of a zoned storage device has a state attribute that indicates the usage of the blocks within the zone and the device resources that zone uses. The following states are defined.

  • Empty None of the blocks within the zone contain valid data.

  • Full All of the blocks within the zone have been written or the zone has been finished by the host using the FINISH ZONE command.

  • Implicit Open Some blocks in the zone have recently been written by the host. The zone is using device internal resources.

  • Explicit Open The zone was allocated device internal resources by the host software through the execution of an OPEN ZONE command.

  • Closed The device internal resources used by a zone were freed explicitly by the host through the execution of a CLOSE ZONE command, or the device implicitly freed the internal resources assigned to the zone to serve write operations targetting different zones.

  • Read Only The zone can only be read. This state generally corresponds to a defective state of the device, e.g. for a hard-disk, the zone is stored on a platter with a broken write head .

  • Offline The zone cannot be read nor written. This state generally corresponds to a defective state of the device, e.g. the storage media for the zone is not operating anymore.

The execution of zone management commands and of write operations may change the state of a zone. The most common transitions defined by all zoned storage device standards are shown in the figure below.

Zone State Transitions Overview

Transition into the read-only or offline states happen generally after a device internal event causing defects. Zones that are in either state cannot return to a fully functional state.

For all other states, the execution of a RESET ZONE command always changes the zone state to empty, indicating that none of the blocks in the zone contain valid data.

A write operation into a zone with the empty state change the zone state to implicit open. Writing all blocks of an implicitly opened zone changes its state to full. A FINISH ZONE command also changes a zone state to full.

An empty or implicitly open zone can be transitioned to the explicitly open state using the EXPLICIT OPEN command. Conversely, implicitly or explicitly opened zoned can be transitioned to the closed state using the CLOSE ZONE command.

Zone Resources Limits

A zoned storage device implementation may require the allocation of internal resources (e.g. a write buffer) to execute write operations into zones. Furthermore, the storage media characteristics of the device may also limit the amount of zones that can be in a partially written state.

Open Zones Limit

Limitations on the total amount of internal resources available to a zoned storage device for processing write operations may impose a limit on the total number of zones that can simultaneously be in the implicit open or explicit open state (open zones). If such limit exists, the zoned storage device may fail write and OPEN ZONE commands to avoid exceeding the maximum number of open zones allowed.

This limit does not affect read operations.

Active Zones Limit

Any zone in the implicit open, explicit open or closed state is defined as an active zone and correspond to any zone that is being written or that has been only partially written. A zoned storage device may impose a limit on the maximum number of zones that can be active. This limit is always equal or larger than the limit on the maximum number of open zones.

While the maximum number of open zones of a zoned storage device only limits the number of zones that a host software can simultaneously write, the maximum number of active zones imposes a limit on the number of zones that it can choose for storing data. If the maximum number of active zones is reached, the host software must either reset or finish some active zones before being able to choose other zones for storing data.

Similar to the limit on the maximum number of open zones, a limit on the maximum number of active zones does not affect read operations. Any zone that is not offline can always be accessed for reading regardless of the current number of open and active zones.

Zone Append

The sequential write constraint imposed by the sequential write required zones of host-managed devices has implications on the host IO stack. Namely, all write commands directed at a sequential zone must not be reordered before they are received by the device and executed. Otherwise, the sequential write requirement would not be met, resulting in write errors. However, the complexity of host IO stacks and the lack of ordering guarantees with some storage adapters and command transports may not allow an implementation to order write commands as required for sequential zones.

Host software can avoid write errors by limiting the number of write commands outstanding per zone to one. But this can result in poor performance, especially for workloads issuing mostly small write operations.

To avoid this problem, some zoned storage devices define the Zone Append command. A zone append command is a write operation that specifies the first logical block of a zone as the write position. When executing the command, the device write the data within the zone indicated, but do so at the current zone write pointer position. This change in the write position is automatic and the effective write position for the data is indicated to the host through the command completion information. This mechanism allows a host to simultaneously submit several zone append operations and let the device process these in any order.

The figure below illustrates the differences between regular write operations and zone append write operations.

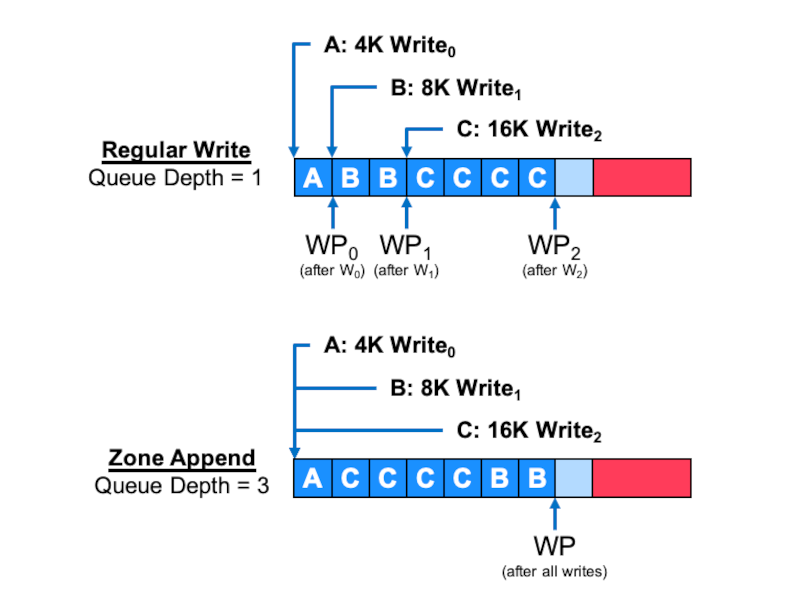

Regular Writes and Zone Append Writes

In the example above, the host must issue to the same zone three different write operations for data A (4KB), B (8KB), and C (16KB). Using regular write commands, this can be done safely only at a write queue depth of 1 per zone, that is, the host must wait for the completion of an outstanding write operation before issuing the next write request. For each write request, the write position must be equal to the zone write pointer position. This results in the data being stored in the zone in the same order as issued.

Using zone append write operations, the write queue depth constraint is removed and the host can issue all three write requests simultaneously. Upon completion of all write requests, the zone write pointer position is identical to the previous case as the total amount of data written is equal. However, the location of the written data within the zone may not correspond to the host command issuing order as commands may have been reordered on their way to the device. The host can discover the effective write position of each request through the zone append completion information.
